    KC-CX Internal Rotary Broach tool




    Rotary Broach Tool


    Rotary broach tool works by rotating the cutter to generate cutting force. The tool developed by the company is a special-shaped hole cutter with easy operation. It is most suitable for general machines, CNC automatic lathe, processing center and drilling machines. It can be used to make blind holes, through holes or regular/irregular polygons. Apart from standard hexagonal and square holes, special shapes such as star shape and spline can also be customized.





    Product performance and characteristics
    1.No need to make punches, electrodes and other tooling, reduce auxiliary costs, quality stability, efficiency greatly improved, versatility.
    2.One step of lathe work,reduces the working time.Use this tool,you can make the internal hex/square easily.It only takes 30 seconds to process 10mm hex and deep 15mm.
    3.It is suitable for machining all kinds of material parts which hardness below HRC30.

    Product Data

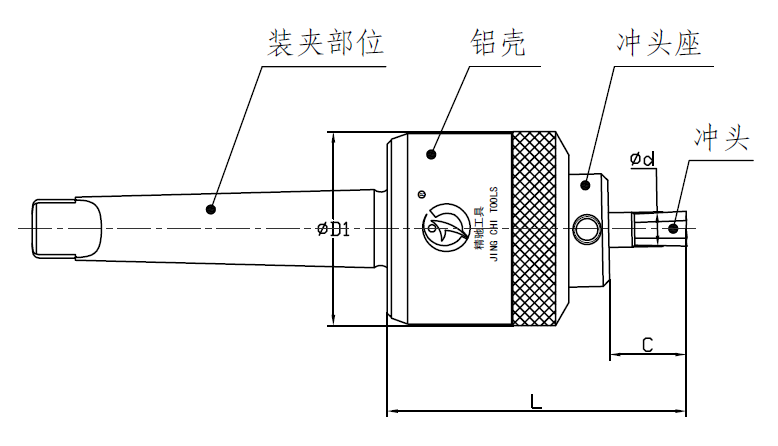

    Model Size Broach Head
    Shank D1 d L C
    KC-CX08AM2 MT2 45 8 70 18 KC-CT08A-***
    KC-CX08AM3 MT3
    KC-CX08AM4 MT4
    KC-CX08A12 Φ12×40
    KC-CX08A16 Φ16×40
    KC-CX08A20 Φ20×50
    KC-CX08A25 Φ25×50
    KC-CX08A32 Φ32×80
    KC-CX16(A/B)M2 MT2 62 16 112/
    152
    A=40
    B=80
    KC-CT16(A/B)-***
    KC-CX16(A/B)M3 MT3
    KC-CX16(A/B)M4 MT4
    KC-CX16(A/B)A16 Φ16×40
    KC-CX16(A/B)A20 Φ20×50
    KC-CX16(A/B)A25 Φ25×50
    KC-CX16(A/B)A32 Φ32×80




    Product Display
